HyperFlow Swimming Pool Pump, 1–3 HP

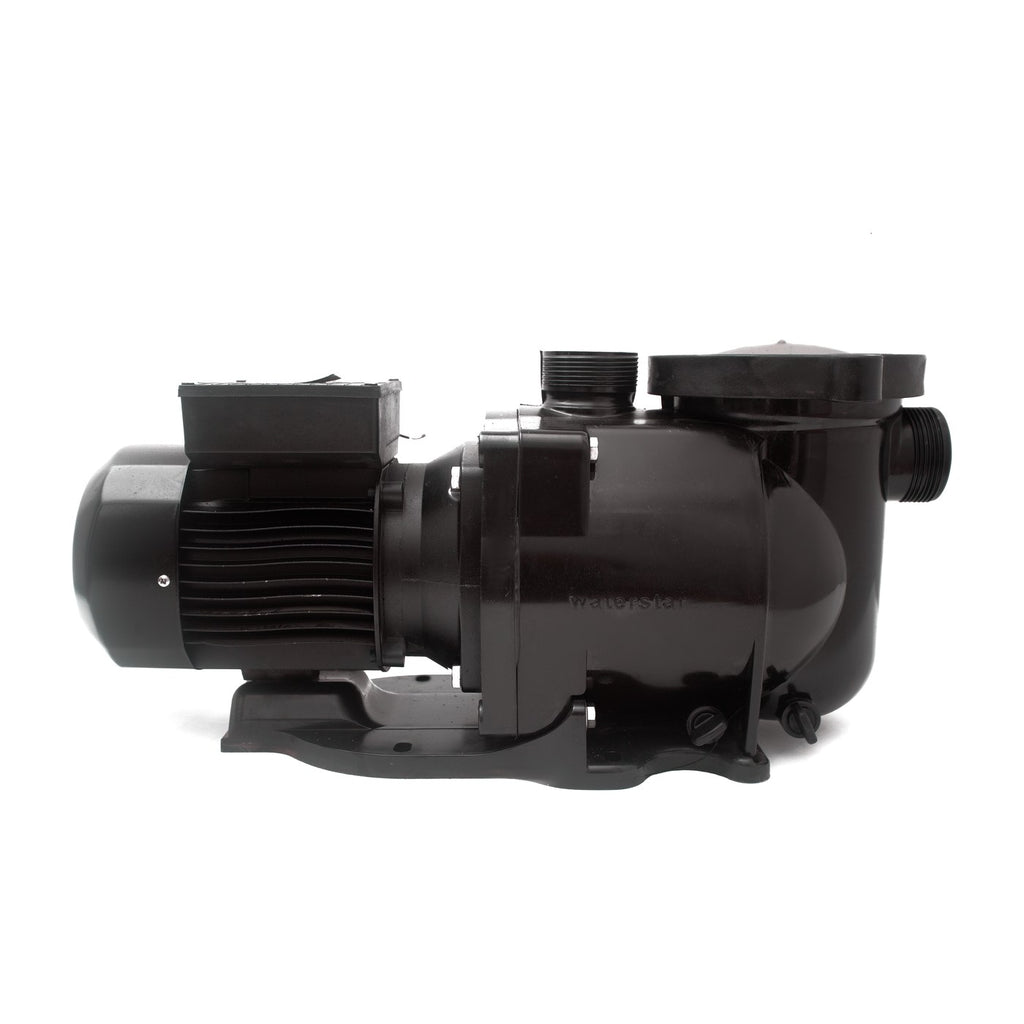

Waterstar HyperFlow swimming pool pump, product photo on white background

EGP 13,965.00

Taxes included. Shipping calculated at checkout.

Power 0.75 kW (1 HP) 1.1 kW (1.5 HP) 1.5 kW (2 HP) 2.2 kW (3 HP, 3-phase)

Dispatch: Dispatched within 14 days of order confirmation

Not sure which size you need? Use the pool calculator

Made in four ratings: 0.75 kW (1 HP), 1.1 kW (1.5 HP) and 1.5 kW (2 HP) single-phase, and 2.2 kW (3 HP) three-phase. Read flow and head at your working point from the performance curve on this page. A self-priming centrifugal pump with an integral strainer basket that traps leaves and hair before the impeller, so the filter sees clean flow and the basket is emptied without tools. Size the pump against the filter's rated flow and the pipe run — an oversized pump channels the sand bed and shortens filter cycles — and fit a check valve on the suction side when the pump sits above water level.

Options

Power	Ref.	Phases	Voltage	Frequency	Current	Speed	Impeller / diffuser	Run capacitor	Lead time
0.75 kW (1 HP)	HF-100M	Single phase	220–240 V	50 Hz (60 Hz optional)	4.8 – 4.4 A	2800 rpm	HFP1007A / HFP1003A	450 V	Ships within 14 days
1.1 kW (1.5 HP)	HF-150M	Single phase	220–240 V	50 Hz	6.6 – 6.0 A	2820 rpm	HFP1007B / HFP1003B	450 V	Ships within 14 days
1.5 kW (2 HP)	HF-200M	Single phase	220–240 V	50 Hz	8.7 – 8.0 A	2820 rpm	HFP1007C / HFP1003C	450 V	Ships within 14 days
2.2 kW (3 HP, 3-phase)	HF-300T	Three phase	220 / 380 V	50 Hz	8.38 / 4.85 A	2840 rpm	HFP1007C / HFP1003C	—	Ships within 14 days

About each option

0.75 kW (1 HP) Ref. HF-100M
HyperFlow swimming-pool pump, 0.75 kW (1 HP), 220 V single phase 50 Hz. Suited to residential pools up to the mid-size range and to spa circulation.

1.1 kW (1.5 HP) Ref. HF-150M
HyperFlow swimming-pool pump, 1.1 kW (1.5 HP), 220 V single phase 50 Hz. Suited to residential pools up to the mid-size range and to spa circulation.

1.5 kW (2 HP) Ref. HF-200M
HyperFlow swimming-pool pump, 1.5 kW (2 HP), 220 V single phase 50 Hz. Suited to larger villa pools and small club or hotel pools.

2.2 kW (3 HP, 3-phase) Ref. HF-300T
HyperFlow swimming-pool pump, 2.2 kW (3 HP), 380 V three phase 50 Hz. Suited to hotel, club and semi-commercial pools where three-phase supply is available.

Specifications

Overall L×W×H	597 × 254 × 265 mm
Insulation / ingress	Class F / IP55
Warranty	2 years
Inlet	1.5" (DNI)

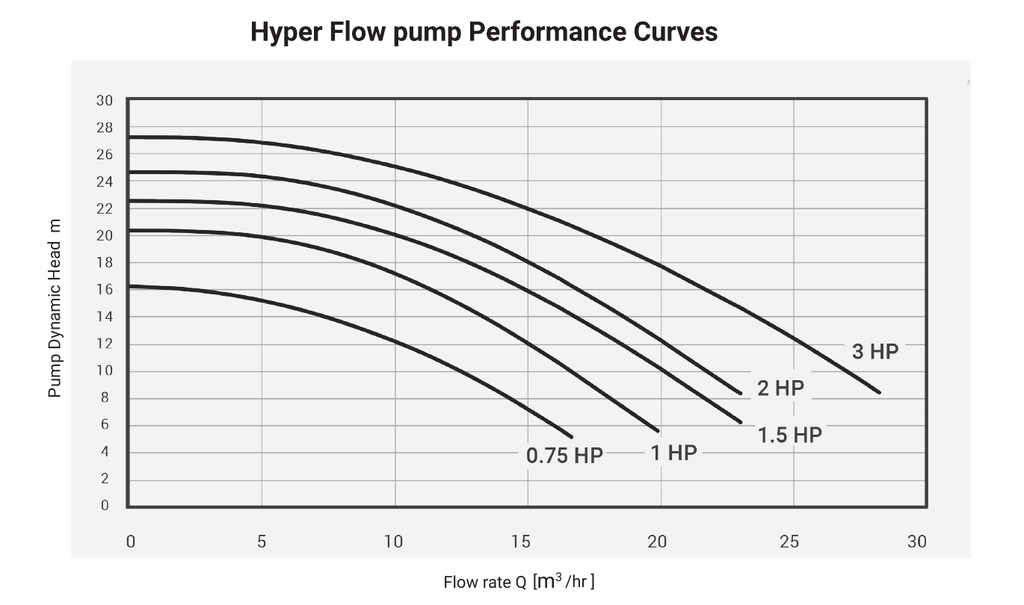

HyperFlow Pump performance curve: flow against head for each rating — Performance curve for the HyperFlow Pump range — flow against head for each rating. Your working point is where the system curve of the pipework and filter crosses the pump curve; the second picture in the gallery shows the same chart.

Download the technical datasheet (PDF)

Pumps — frequently asked questions

Which pump size do I need for my pool?

Start from turnover: the whole pool volume should pass through the filter in about 8 hours for a residential pool, 6 hours for a commercial pool and 4 hours for a competition pool. Divide the volume in m³ by that time to get the flow in m³/h, then pick the pump whose curve delivers that flow at your system head — and never above the filter's rated flow. Waterstar pumps run from 0.75 kW (1 HP) to 2.2 kW (3 HP). The pool calculator on this site does the arithmetic.

What is the difference between the SuperStar and HyperFlow pumps?

Both are self-priming centrifugal pumps with an integral strainer basket, Class F insulation, IP55 protection and a 2-year warranty. The SuperStar has 2" inlet and outlet ports for larger pipework and higher flows; the HyperFlow uses 1.5" ports in a more compact body suited to residential pools and spa circulation. Each is offered in 1, 1.5, 2 and 3 HP.

Single-phase or three-phase?

The 1, 1.5 and 2 HP models run on 220–240 V single phase, 50 Hz (60 Hz on request). The 3 HP models (SS-300T and HF-300T) are three-phase 220/380 V, which suits hotel, club and semi-commercial plant rooms where a three-phase supply is available.

Can the pump be installed above the water level?

Yes — the pumps are self-priming. Keep the suction run short, fit a check valve on the suction line so the pump stays primed after a stop, and install the pump under cover with ventilation: IP55 protects against splashing and dust, not submersion. Empty the strainer basket weekly in season.
